When a user adds an action in Awell Studio, they can configure it based on their needs. As an extension developer, you define the fields that users must configure to use your action. Each action can have no fields, a single field, or multiple fields, depending on its requirements.

Action fields

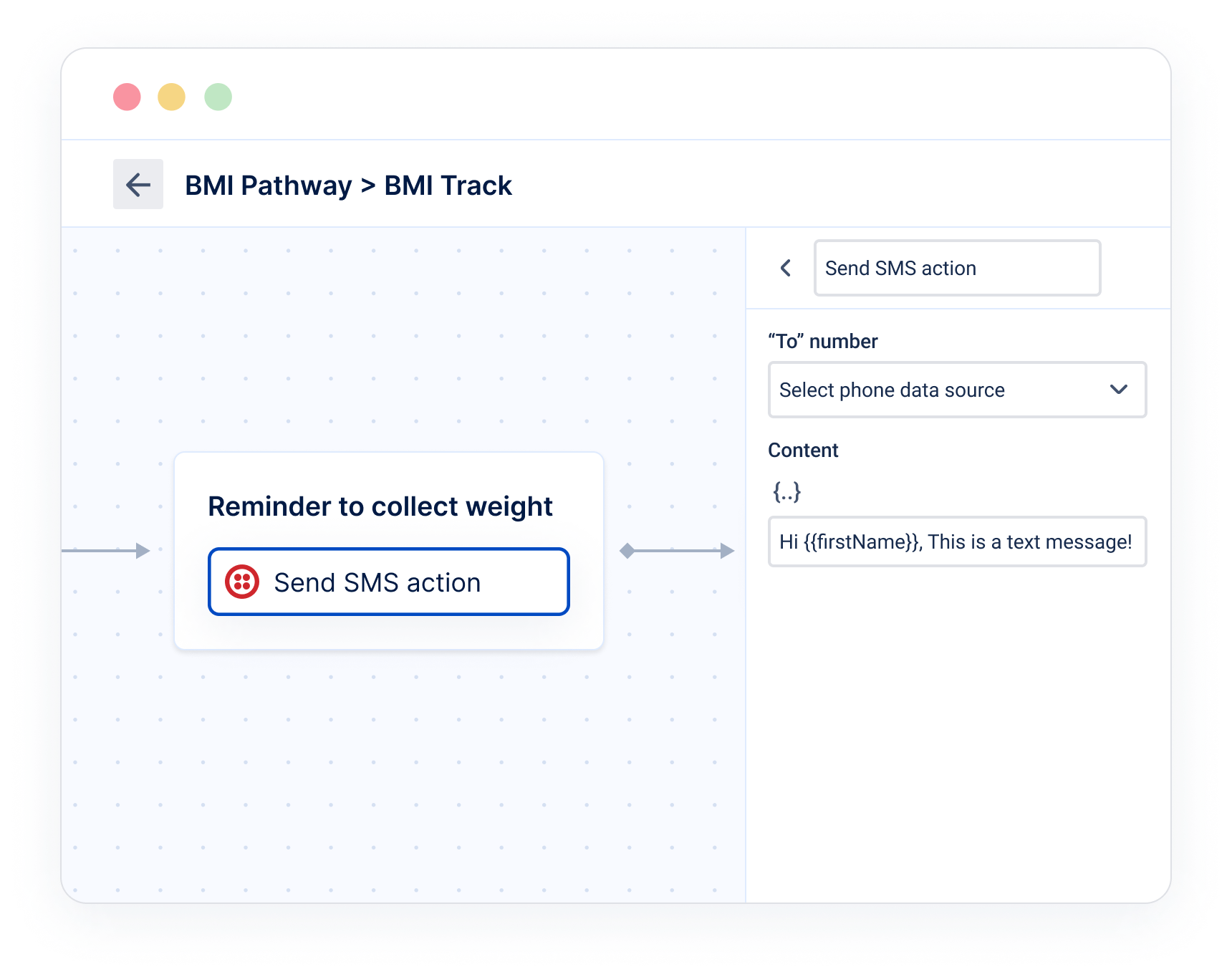

"To number" and "Content" are action fields the user has to configure in Awell Studio.

Field properties

Required properties

Name
id
Type
string
Description

The unique identifier for your field. Please note that the field key (of the object) should be equal to its id.

Name
label
Type
string
Description

The title or name for your field. This will be displayed as the label on top of the input field.

Name
type
Type
string
Description

The type of the field. Read more below ("Field types").

Optional properties

Name
description
Type
string
Description

A description for your field. This will be displayed as the sublabel on top of the input field.

Name
required
Type
boolean
Description

Whether the field is required for a user to configure. Defaults to "false"

Name
stringType
Type
string
Description

Only applicable if `type` equals `string`. Read more below ("Field types").

Field types

Action fields are strongly typed so for every field you need to specify what type of value a user can enter. In Awell Studio, the appropriate fields are rendered in the UI based on the type.

String

A string field is a single-line input without the ability to insert variables.

We have support for multiple string types:

  1. Text
  2. Email
  3. Phone
  4. URL

For all string types, we make sure to render the appropriate inputs in Awell Studio. When no string type is defined, we assume the string will be regular text.

01

Text

A text field is a multi-line input with support for inserting variables.

01

Number

Allows a user to insert a number.

01

Boolean

Allows a user to toggle a boolean input field on or off.

01

Date

Allows a user to insert a date.

01

HTML

Will render a WYSIWYG in Awell Studio so users can enter rich formatted text with support for inserting variables.

01

JSON

Will render an input field where the user can enter a JSON object with support for inserting variables.

01

Use dropdowns

Both the string and numeric field types support dropdowns, which are rendered as a Select input in Awell Studio. Handy if you want to limit the options a user can choose from.

01

Example

01
Create an actiononEvent
